Point Cloud Modelling Services

CAD Drafters’ CAD-to-BIM capabilities convert your 2D CAD drawings directly into practical, data-rich, and advanced 3D BIM models for renovations, retrofits, and modern design augmentation. We help architects, engineers, and contractors start with their legacy CAD files and convert them to BIM-ready files that digitally include complete and accurate architectural, structural, and MEP elements to your chosen Level of Development (LOD 100-500). From documenting original design intent to facilitating clash detection, coordinated documentation, and 4D/5D simulations, our CAD-to-BIM services enable better project coordination, more precise representations of the design, and significant time, cost, and rework savings, allowing you to construct with complete confidence.

20+

Years Of Experience

24,000 +

Satisfied Clients

98 %

Client Satisfaction Rate

Point Cloud Modeling Services by CAD Drafters

CAD Drafters is a company dedicated to providing the highest level of , which converts raw laser scan data into highly accurate and coordinated BIM Models. Whether it be a renovation, retrofit, or facility management, these models provide an accurate digital version of the existing conditions. With experience in architecture, structure, and MEPFP systems, we help architects, engineers, surveyors, and contractors minimize errors and achieve fit outs without the additional and costly rework.

Architectural Point Cloud Modeling

We develop precise as-built models of architectural components such as walls, doors, windows, roofs, floors, and finishes directly from scan data. The models are used for validating designs, visualization, and renovation plans.

Structural Point Cloud Modeling

Our staff converts scan data into structural BIM models, accurately documenting beams, columns, trusses, slabs, and foundations. The models provide a reliable reference for retrofits, rebuilding or structure assessments.

MEPFP Point Cloud Modeling

We deliver information-reach models of mechanical, electrical, plumbing, and fire protection (MEPFP) systems such as ductwork, piping, conduits, panels, and sprinklers as independent models to ensure seamless coordination with other trades.

As-Built BIM Models

By utilizing point cloud scans of the building, we can produce accurate as-built BIM models of the existing building conditions. These models will become the basis for renovation, refurbishment, or facility management projects.

Clash Detection & Coordination

With our advanced clash detection methods using Navisworks, we can identify and resolve conflicts between architectural, structural, and MEP systems in the early design stages, saving time, energy and avoiding expensive rework.

Facility Management Models

Our use of point cloud models extends beyond the construction phase and provides facility managers with accurate as-built digital twins that support maintenance, operations, and lifecycle planning.

2D CAD Drawings from Point Cloud

We produce detailed 2D CAD drawings (.dwg) from the point cloud data which includes detailed floor plans, elevations, and sections, excellent for documentation, permitting, and approvals.

Renovation & Retrofit Modeling

For refurbishment and retrofit projects, we can use 2D laser scans to provide models that capture the existing conditions – this allows for better planning and leads to more certainty when it is time to build.

Heritage & Historical Building Modeling

We have a specialty in modeling heritage and historic buildings from scanned data, capturing valuable, intricate details for preservation, restoration, and digital archiving purposes.

Infrastructure Point Cloud Modeling

While we mainly practice modeling existing buildings, we also provide modeling from point cloud data for infrastructure, roads, bridges, tunnels, and utilities, representing the work done by large public civil infrastructures.

Scan-to-Fabrication Models

We produce fabrication-ready BIM models derived from point cloud data, which means contractors and manufacturers can build prefabrication with confidence and accuracy.

Tailored LOD-Based Modeling

We provide models at multiple Levels of Detail (LOD 100–500), which can be for early concept design, detailed coordination, or very detailed construction documentation for your project.

Why Leading Architects, Engineers, and Contractors Choose Our Point Cloud Modeling Services

Thanks to years of service and hundreds of point cloud to BIM projects under our belt, CAD Drafters has earned the position of trusted partner for accurate as-built modeling and digital project delivery. Our team is skilled in creating BIM models from laser scans and survey information in robust, clash-free environments with the required LOD, capturing all architectural, structural, and MEP details.

Using some of the best tools in the industry, including Revit, AutoCAD, and Navisworks, we are able to develop your point cloud information into models that facilitate the design validation, retrofit planning, renovation projects, or long-term facility management. From creating floor plans and elevations to performing clash detection and coordination, CAD Drafters models reduce uncertainty and project flow.
By engaging CAD Drafters as a partner for your point cloud modeling, you gain an advocate for your project, assisting with accurate as-built documentation, detailed constructability reviews, and careful deliverables that help reduce rework costs, while providing ongoing communication with confidence and support. With customers as far away as the continental US and Hawaii, CAD Drafters is trusted to deliver on time, provide accurate documentation, and coordinate customer expectations to ensure success.

Eager to convert your scan data into accurate, as-built BIM models? Connect with us today for a free

Our Benefits

Reliable Accuracy

Our process of scanning raw data allows us to generate extremely accurate models and clash-free Building Information Modelling (BIM), at your chosen Level of Detail (LOD).

End-to-End Support

Our models make design, coordination, and facility management easier from as-built documentation to renovation planning.

Reduced Costs & Rework

Our level of detail in models helps to reduce errors, clashes, and save time and costs related to construction execution.

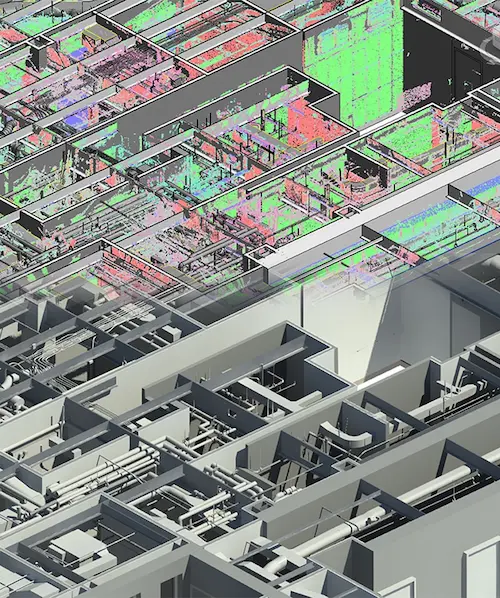

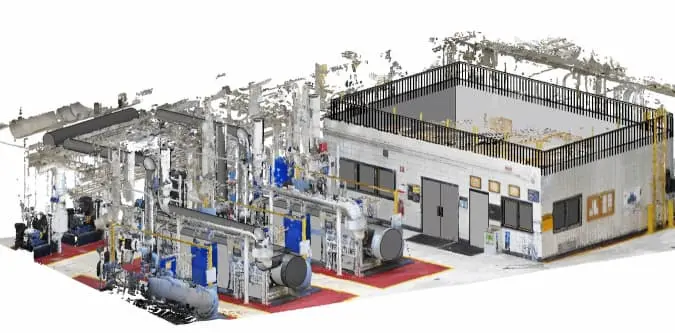

Point Cloud Modelling Samples

Our Workflow for Point Cloud Modeling Services

At CAD Drafters, we use a systematic process that transitions your point cloud data into reliable, accurate, and usable BIM models or CAD Drawings. Our methodology minimizes errors, improves coordination, and ensures consistent quality and explosion of information with any project we produce.

Data Processing & Model Setup

We then bring your point cloud or laser scan data in .rcp, .rcs, .e57 or .fls into industry-standard platforms such as Revit and AutoCAD. Once we process your data, our team will set levels, grids, and reference points for accuracy and consistency through the modeling process. This is an invaluable step to ensure a solid foundation for as-built modeling.

Modeling, Quality Checks & Deliverables

Next, we will model the architectural, structural and MEPFP elements from the point data using the required Level of Detail (LOD). Various quality checks on each model will be undertaken, including clash detection and a constructability review to ensure accuracy and coordination of information. Finally, our information is delivered in BIM models (.rvt) and/or 2D CAD drawings (.dwg) with dimensions, annotations, and layering - ready for planning, approvals or execution of the project.

Trusted Clients

How We Turn Your Vision Into Efficient Point Cloud Modeling services: Our 9-Step Process

Customer Reviews

CAD Drafters transformed our laser scan data into an accurate BIM model that our design team could immediately apply. Their speed and accuracy saved us weeks of rework and enabled us to stay on schedule with the renovation project.

Michael R., Senior Architect★ ★ ★ ★ ★

We outsourced our point cloud modeling to CAD Drafters and were impressed with their accuracy and coordination. The clash detection they performed changed the game, and eliminated costly surprises on the construction side.

Sarah L., MEP Project Manager★ ★ ★ ★ ★

CAD Drafters was reliable, accessible, and delivered exactly what we needed. Their as-built models evaluated from scan data have become an integral part of our facility management and strategy.

James T., Facility Director★ ★ ★ ★ ★

Why Choose CAD Drafters

By choosing to work with CAD Drafters, you are working with a group of professionals who are committed to accuracy, reliability, and collaboration. Through our use of point cloud modeling expertise, we capture all details, from architectural details to built and MEPFP systems and precisely deliver the Level of Detail (LOD) that is required of your project. In the course of providing models and drawings, we utilize the latest software, proven workflows, and thorough quality checks, thereby delivering models and drawings that minimize rework, enhance coordination, and facilitate smarter project decisions. CAD Drafters has developed a reputation for delivering on time, clear communication, and works nationally to serve architects, engineers, contractors, and facility managers who are seeking reliable digital solutions.

Industries We Serve with Point Cloud Modelling Services

Residential Housing

Commercial Builders

Hospitality and Hotels

Mixed-Use Development

Industrial Facilities

Institutional Projects

Frequently Asked Questions

What is point cloud modeling, and why is it necessary?

Point cloud modeling takes laser scan data and turns it into an accurate 3D BIM or 2D CAD model. This allows for as-built conditions to be captured accurately, which in turn will assist with design validation, renovation, coordination, and facility management.

What formats of files can you work with?

We work with a large variety of scan format,s including .rcp, .rcs, .e57, .fls, .pcg, and .obj, and we will convert these into Revit (.rvt) and CAD (.dwg) deliverables.

What industries do you service with point cloud modeling?

We service architects, engineers, contractors, surveyors, and facility managers in the health care sector, commercial, residential, industrial, hospitality, and infrastructure fields.

What Level of Detail do you provide?

We have models ranging from LOD 100-500, depending upon the project requirements, from early design development to highly detailed construction documentation.

How does outsourcing to CAD Drafters benefit my project?

CAD Drafters give you access to an experienced team that takes care of accuracy, clash-free coordination, on-time production, and less rework, all while extending your capabilities on-site, without overhead costs.
