Permit-Ready CAD Drafting Service Illinois Built for IBC and IAC

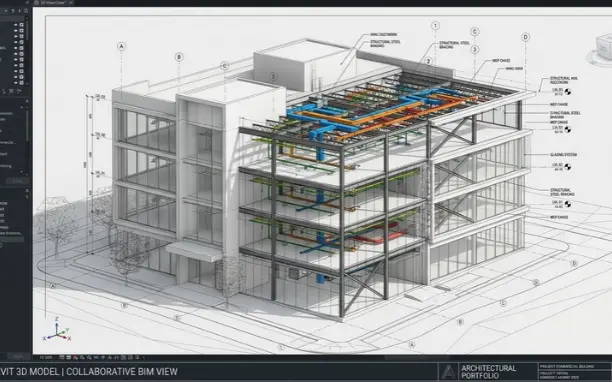

Our Illinois CAD drafting service delivers code-checked 2D plans and 3D models in DWG and Revit files, built to IBC, IAC, and Chicago permit standards.
- HVHZ Wind-Load Structural Drafting
- FBC Envelope & Thermal Modeling
- MEP Coastal Corrosion Mitigation
- Submittal-Ready Construction Drawings
Structural Tie-Downs
Continuous load-path strap holdown schedules
FEMA Flood Elevation
Base flood elevation hydrostatic vents
HVHZ Glazing Schedules
Miami-Dade NOA product approval indices
Foundation Systems
Poured pile auger-cast slab details

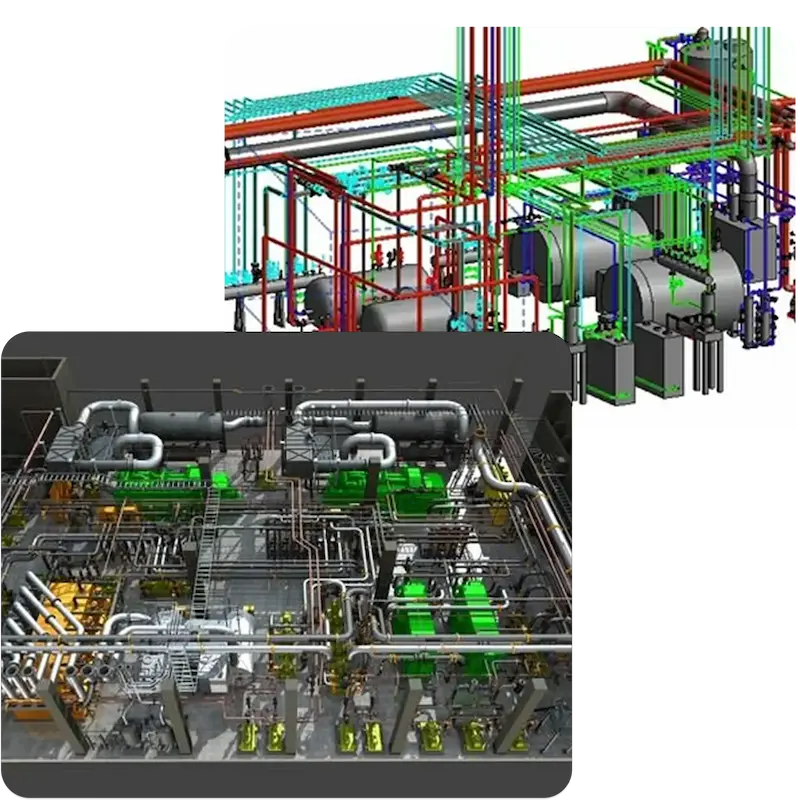

Why Should Architects & Contractors Outsource CAD Drafting Services Illinois-Wide?
Illinois CAD drafting outsourcing services add skilled drafters without hiring, cut payroll costs, and meet permit deadlines, with files protected under signed NDAs, scalable capacity for bid season, and consistent Illinois building code standards.
- Lower overhead than in-house staff
- Faster turnaround on permit sets
- Scalable team for bid season
- Standards built to Illinois codes
- Secure file sharing and backups
What Do CAD Drawing Services Illinois Packages Include?
Each package includes labeled floor plans, elevations, mechanical layouts, structural details, site plans, and schedules.

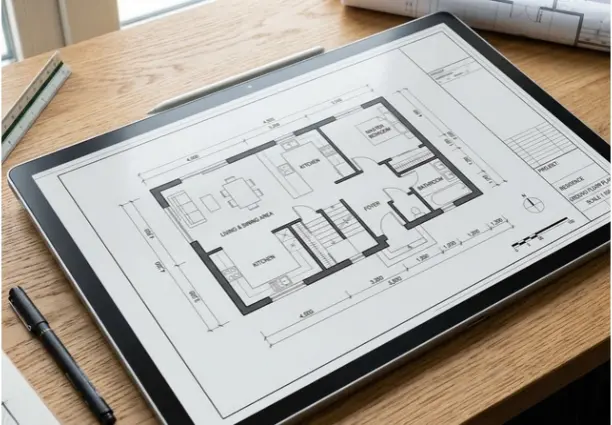

Floor Plans
Dimensioned plans show walls, doors, stairs, and room sizes at the scale plan examiners expect, with grid lines and notes.

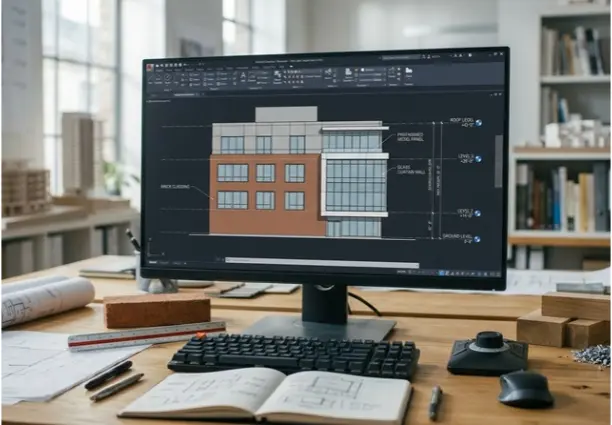

Elevations & Sections
Elevations and wall sections show heights, materials, and assemblies that meet local zoning height limits, with clear callouts for finishes.

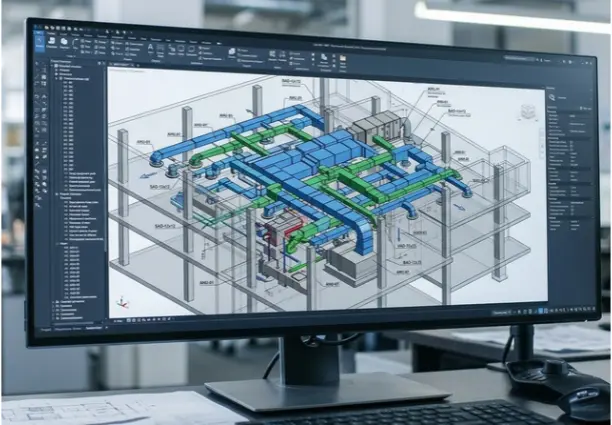

Mechanical Layouts
Mechanical CAD drafting services in Illinois place ducts, diffusers, and equipment pads on coordinated layers, so installers and inspectors can trace runs.

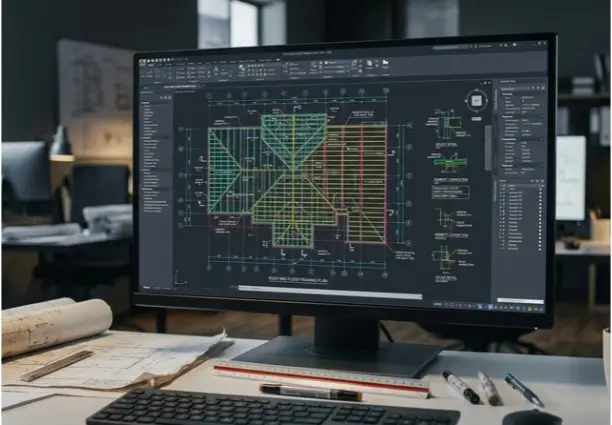

Structural Details
Structural CAD drafting services in Illinois include footings, framing plans, and connections reflecting soil reports, snow loads, and frost depth.

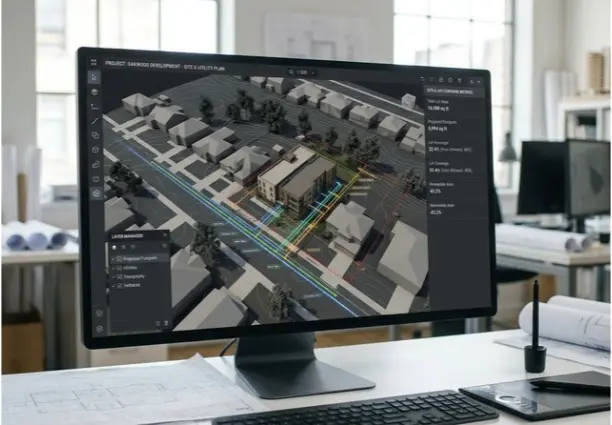

Site Plans
Site plans show setbacks, lot coverage, easement lines, and utility connections, giving zoning reviewers boundaries and clearances they check first.

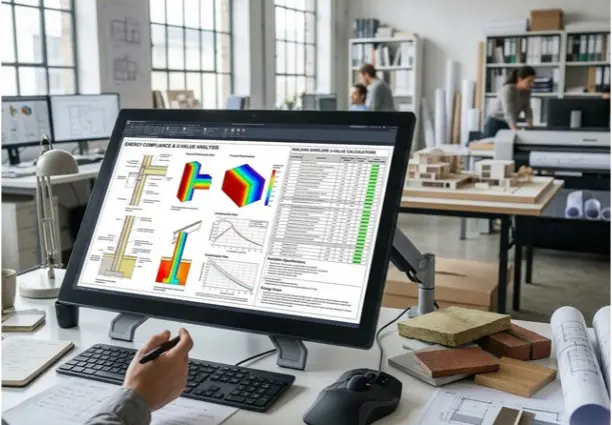

Schedules & Notes
Door, window, and finish schedules match plan callouts exactly, with energy notes and U-value tables placed where plan examiners expect.
What Local Factors Change the Price and Schedule of Illinois Drafting Work?
Price and schedule depend on project complexity and local requirements, which vary across Illinois jurisdictions.
County Frost Depth
Footing depths shift by county, so drafters revise foundation sheets, adding drafting hours on northern projects with deeper frost lines.
Chicago Amendments
Chicago permit sets need city-specific details, adding sheets and review effort compared with standard ICC-based submittals in other Illinois areas.
Energy Compliance
Energy notes, U-value tables, and window schedules appear on every set, adding time to detail but preventing rejections that delay approval.
Sealed Commercial Review
An Illinois engineering CAD service sends commercial sets to a licensed architect or engineer for sealing, which adds review time.
What Does the Workflow of a CAD Drafting Service Illinois Owners Hire Look Like?
Intake and Survey Review
Illinois 2D CAD drafting services start with your sketches and survey. Drafters set the scale first.
Drafting and Modeling
Drafters build plans, sections, and details in AutoCAD or Revit. Models follow county frost rules.
Two-Pass Quality Review
Reviewers check each sheet twice, then share redlines by PDF markup so changes stay trackable.
Delivery and Revisions
Final sets arrive as DWG and PDF files. Revisions follow plan examiner comments within days.
Send your survey and sketches today, and get code-checked, permit-ready sheets from a CAD drafting service Illinois builders trust.
Which Codes and Permit Rules Must Illinois CAD Drawings Meet?
Drafting services in Illinois follow ICC model codes, including the IBC, IRC, and IECC, while Chicago applies its own amendments and counties add local rules. CAD Drafters team matches every sheet, note, and detail to the correct jurisdiction before permit submission.
- IBC and IRC govern structure
- IECC energy notes on sheets
- Illinois Accessibility Code ramp limits
- Chicago amendments replace ICC templates
- ASCE 7 wind and seismic loads
Where Can You Find CAD Drafting Services Near Me Illinois Builders Trust?
Our drafters support CAD projects in these ten cities, from northern suburbs to downstate Springfield.
What Results Do Illinois Teams See After Switching Their Drafting Partner?
How Do Accuracy Checks Keep Illinois Permit Sets From Coming Back Marked Up?
An engineering CAD service Illinois firms use cuts plan review rework by verifying dimensions, setbacks, and frost depth against the plat of survey, so examiners return fewer comments and approvals move faster.
- Dimensions verified against survey
- Frost depth set per county
- Layers follow AIA standards
- Redline comments closed before release
Nationwide CAD Coverage Across Diverse State Building Codes
Our remote CAD drafting services prepare permit-ready drawing sets compliant with distinct state building codes nationwide.
Which Specialized Drafting and BIM Services Can Illinois Project Teams Add?
Illinois projects need clash coordination, scan-to-CAD, shop drawings, PDF conversion, and MEP BIM drafting services.
Clash Coordination
Navisworks checks flag duct, pipe, and steel conflicts early, reducing field fixes on Illinois builds.
3D Scan to CAD
3D CAD modeling services in Illinois turn laser scans into accurate models for tight renovation work.
Millwork & Casework Shop Drawings
Half-inch scale drawings detail cabinets, casework, trim, and built-ins with exact reveals and fastener notes.
Structural Steel Shop Drawings
Anchor bolt plans and connection details support fabricators working in clay and glacial till soils.
PDF to CAD Conversion
Old paper plans and PDFs are converted into clean DWG files with organized layers, dimensions, and text.
MEP BIM Services
Mechanical, plumbing, and electrical models sync in a single file to reduce ceiling conflicts in offices.
Which Illinois Regions Can Our Drafters Cover Without Slowing Your Schedule?
Chicago & Cook County
Loop tenant spaces, lofts, and suburban buildings are drawn to Chicago amendments and review formats.
DuPage County
Permit sets for homes, offices, and warehouses use consistent layers, sheet numbers, and submittal formats.
Lake County & the North Shore
Remodels, additions, and commercial interiors must comply with village setbacks, zoning limits, and municipal plan review requirements.
Will County & Southwest Suburbs
Residential, industrial, and logistics projects receive footings matched to clay soils and county frost depth.
Northern Illinois
Northern plants, shops, and homes receive drawings sized for snow loads and deeper frost lines.
Central & Southern Illinois
CAD Services Illinois cover clinics, plant expansions, and farm buildings using standard sheets and redlines.
Which Building Types Do CAD Drafting Company Illinois Owners Hire to Handle?

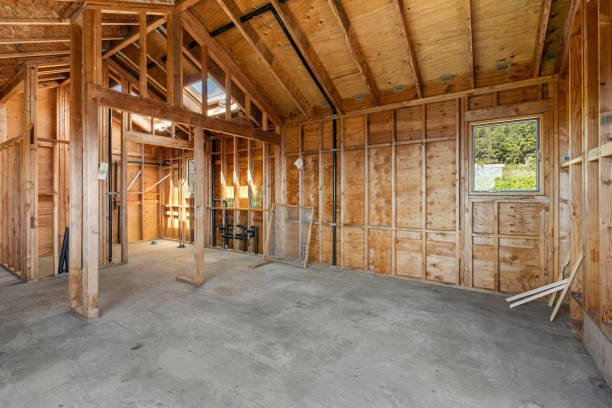

Residential Builds
Architectural CAD drafting services Illinois homeowners hire cover frost-depth footings, egress windows, additions, and basements.
Online Kickoff
Tenant build-outs get coordinated plans, reflected ceiling layouts, and life safety sheets for plan examiners.
Industrial and Warehouse
Warehouse layouts, egress paths, dock details, and structural supports are drafted for busy Illinois plants.
Historic Renovations
Drawings match masonry coursing, trim profiles, and window details for landmark review of Illinois buildings.
Frequently Asked Questions
How deep is the frost line in Illinois?
Frost depth runs from about 36 inches in southern Illinois to 42 inches in the north. Drafters set footing depths by county and confirm them with the local building department.
Do Illinois permit drawings need a professional seal?
Commercial and multifamily projects require a seal from a licensed Illinois architect or structural engineer through the IDFPR. Plan examiners reject unsealed sets, so drafters prepare drawings for stamping before submission.
Does Chicago use different codes than the rest of Illinois?
Yes, Chicago amends the IBC heavily through its Construction Codes. Drafters use city-specific details instead of generic ICC templates, which avoids comments and costly delays during city plan review.
Do you offer CAD drafting services near me in Illinois?
Yes, our drafters work with clients across Chicagoland, northern, central, and southern Illinois. Files and redlines move by secure link and PDF markup, so location never slows down your project.
What file formats do you deliver?
Final files are delivered as DWG, PDF, and Revit files when needed. Layers follow AIA standards, and sheet numbers follow the G, A, S, M, P, and E series common in permit sets.
